Categoría de producto: rosca BSPT para adaptador de accesorios de tubería
Tabla de tamaños de rosca BSPT: de G1 / 8 "a G3", utilizada principalmente en el Reino Unido, Europa occidental y Japón.
BSPT (R) estándar de rosca macho y hembra según BS 21, ISO 7/1. JIS B 0203, similar a 3852-2 forma Z, JIS B8363.
Para tipos de rosca de tubería: adaptador Npt, adaptador SAE ORB, BSPP, métrico, accesorios de puerto UNF,

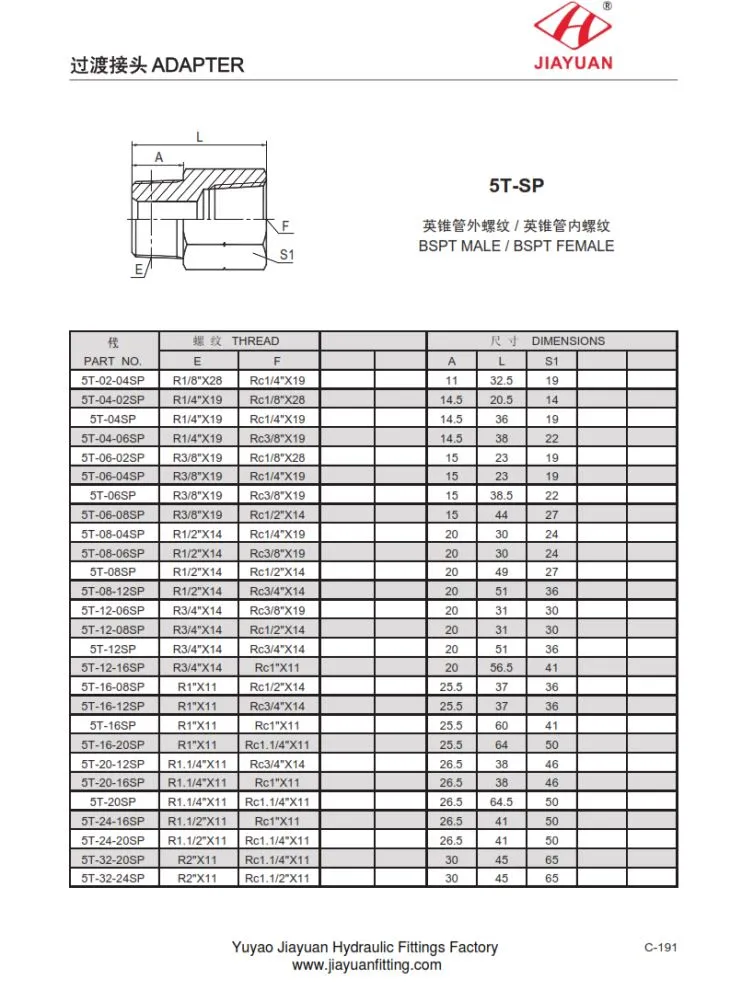

Tabla de dimensiones 5T-SP BSPT MACHO / BSPT HEMBRA de la siguiente manera:
PA RT NO. | T HR EA D | DI M E N S IONES | |||||
mi | F | UNA | L | S 1 | |||
5 T -02-04 S P | R 1/8 " X 2 8 | Rc 1/4 " X 1 9 | 1 1 | 32 .5 | 1 9 | ||
5 T -04-02 S P | R 1/4 " X 1 9 | Rc 1/8 " X 2 8 | 14 .5 | 20 .5 | 1 4 | ||
5 T -04 S P | R 1/4 " X 1 9 | Rc 1/4 " X 1 9 | 14 .5 | 3 6 | 1 9 | ||
5 T -04-06 S P | R 1/4 " X 1 9 | Rc 3/8 " X 1 9 | 14 .5 | 3 8 | 2 2 | ||
5 T -06-02 S P | R 3/8 " X 1 9 | Rc 1/8 " X 2 8 | 1 5 | 2 3 | 1 9 | ||
5 T -06-04 S P | R 3/8 " X 1 9 | Rc 1/4 " X 1 9 | 1 5 | 2 3 | 1 9 | ||
5 T -06 S P | R 3/8 " X 1 9 | Rc 3/8 " X 1 9 | 1 5 | 38 .5 | 2 2 | ||
5 T -06-08 S P | R 3/8 " X 1 9 | Rc 1/2 " X 1 4 | 1 5 | 4 4 | 2 7 | ||
5 T -08-04 S P | R 1/2 " X 1 4 | Rc 1/4 " X 1 9 | 2 0 | 3 0 | 2 4 | ||
5 T -08-06 S P | R 1/2 " X 1 4 | Rc 3/8 " X 1 9 | 2 0 | 3 0 | 2 4 | ||
5 T -08 S P | R 1/2 " X 1 4 | Rc 1/2 " X 1 4 | 2 0 | 4 9 | 2 7 | ||
5 T -08-12 S P | R 1/2 " X 1 4 | Rc 3/4 " X 1 4 | 2 0 | 5 1 | 3 6 | ||
5 T -12-06 S P | R 3/4 " X 1 4 | Rc 3/8 " X 1 9 | 2 0 | 3 1 | 3 0 | ||
5 T -12-08 S P | R 3/4 " X 1 4 | Rc 1/2 " X 1 4 | 2 0 | 3 1 | 3 0 | ||
5 T -12 S P | R 3/4 " X 1 4 | Rc 3/4 " X 1 4 | 2 0 | 5 1 | 3 6 | ||
5 T -12-16 S P | R 3/4 " X 1 4 | Rc 1 " X 1 1 | 2 0 | 56 .5 | 4 1 | ||
5 T -16-08 S P | R 1 " X 1 1 | Rc 1/2 " X 1 4 | 25 .5 | 3 7 | 3 6 | ||
5 T -16-12 S P | R 1 " X 1 1 | Rc 3/4 " X 1 4 | 25 .5 | 3 7 | 3 6 | ||
5 T -16 S P | R 1 " X 1 1 | Rc 1 " X 1 1 | 25 .5 | 6 0 | 4 1 | ||
5 T -16-20 S P | R 1 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 25 .5 | 6 4 | 5 0 | ||
5 T -20-12 S P | R 1 . 1/4 " X 1 1 | Rc 3/4 " X 1 4 | 26 .5 | 3 8 | 4 6 | ||
5 T -20-16 S P | R 1 . 1/4 " X 1 1 | Rc 1 " X 1 1 | 26 .5 | 3 8 | 4 6 | ||
5 T -20 S P | R 1 . 1/4 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 26 .5 | 64 .5 | 5 0 | ||
5 T -24-16 S P | R 1 . 1/2 " X 1 1 | Rc 1 " X 1 1 | 26 .5 | 4 1 | 5 0 | ||
5 T -24-20 S P | R 1 . 1/2 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 26 .5 | 4 1 | 5 0 | ||
5 T -32-20 S P | R 2 " X 1 1 | Rc 1 . 1/4 " X 1 1 | 3 0 | 4 5 | 6 5 | ||
5 T -32-24 S P | R 2 " X 1 1 | Rc 1 . 1/2 " X 1 1 | 3 0 | 4 5 | 6 5 | ||
